2000 PSI Three-Piece High-Platform Ball Valve

BVA-132DT/B/S - 3 Piece Ball Valve

SPECIFICATIONS
Available Material	CF8M/WCB
Working Pressure	1/4"-2" 2000 PSI
Ball Bore	Full
End Connection	Threaded / Socket Weld / Butt Weld
Size Range	1/4" to 2"
ISO Mount	有

ADDITIONAL APPLICATION
Operation	Handle/Actuator
Options	SEAT:PTFE+15%GL/PTFE+50%SS/TFM1600/TFM4215/PEEK

undefined

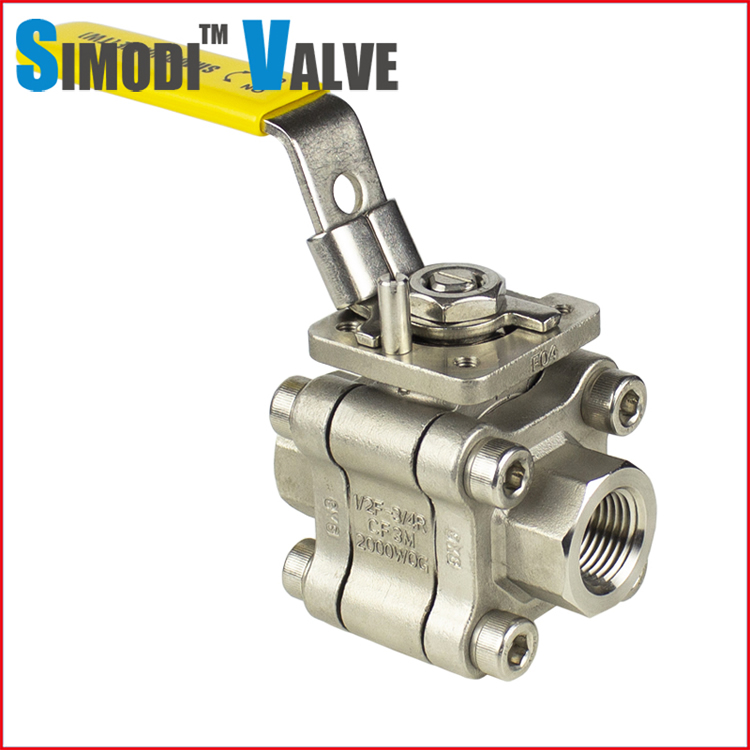

2000 PSI Three-Piece Ball Valve

undefined

BVA-132DT/B/S Three-piece high-pressure ball valve

SPECIFICATIONS
* Working Pressure: 1/4”~2”2000PSI
* Temperature Range: -15℃～150℃(PTFE)
* End Types: Female Threaded/Butt Weld/Socket Weld
*Locking Device
* ISO5211 Direct-Mounting of Actuators of Valves Design
* Blow-Out Proof Stem Design, Antistatic Device
*Investment Casting

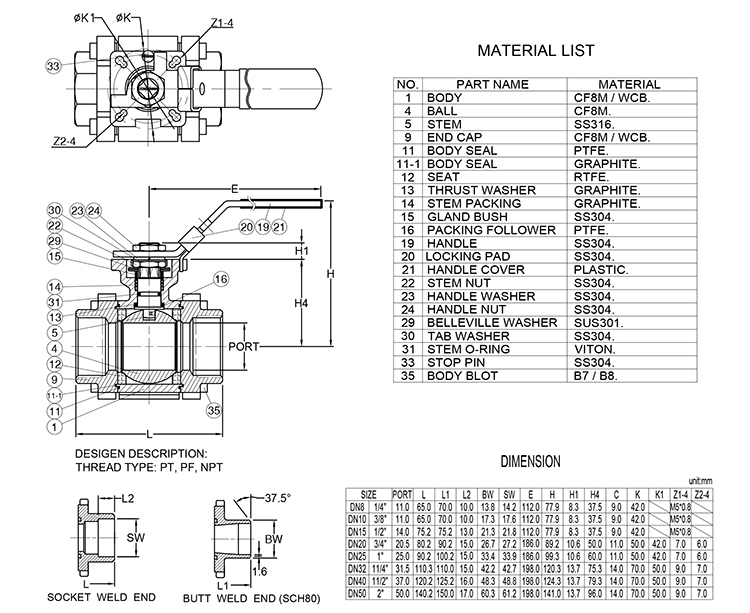

SIMODI 2000 PSI Ball Valve Drawing Files
